OZ-110 Dispersing Stabilizer
OZ-110 is a high-performance non-ionic processing aid designed to tackle common manufacturing challenges. It effectively mitigates poor flow properties that cause production slowdowns and processing difficulties, significantly reduces surface defects, minimizes equipment wear and maintenance costs, and ensures consistent product quality across thermoplastic and thermosetting applications.
TECHNICAL SPECIFICATIONS

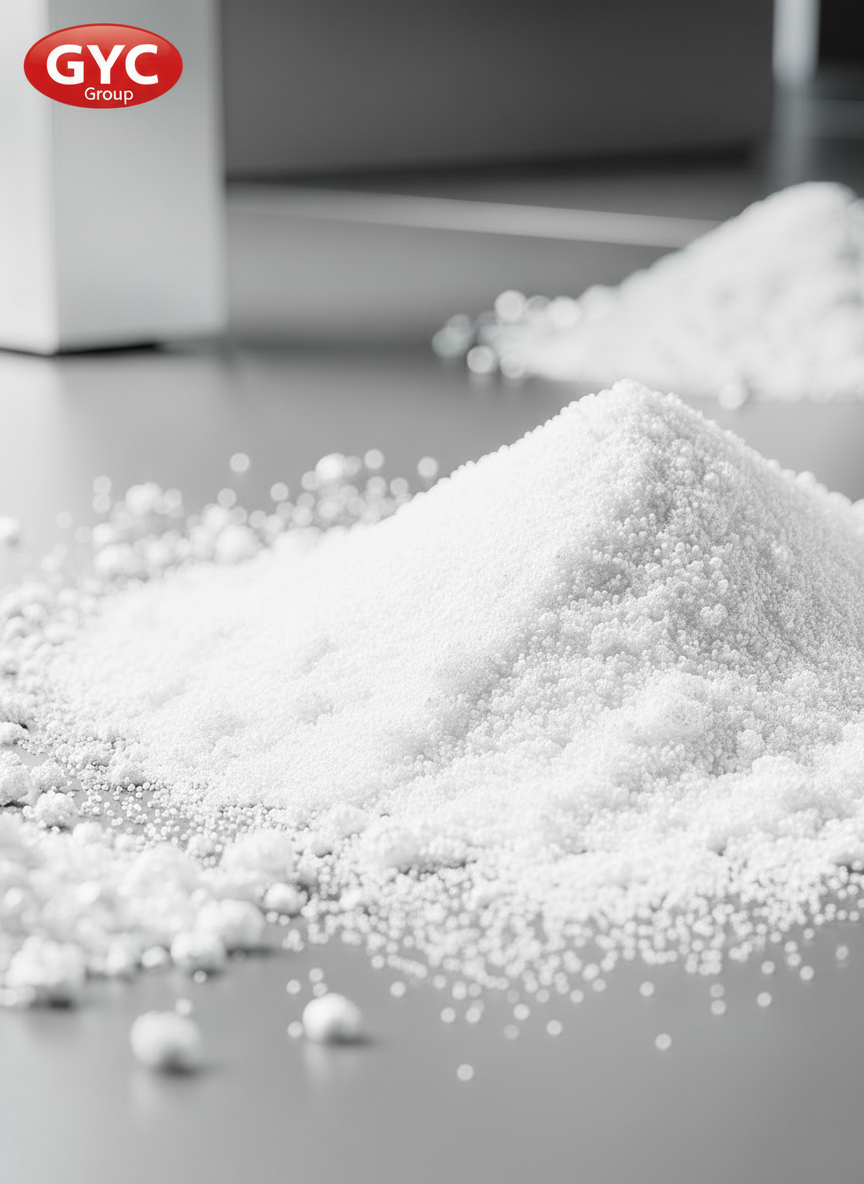

OZ-110 is a non-ionic dispersing stabilizer designed as a fine white micro powder with exceptional thermal stability and processing
characteristics.Its unique particle structure and chemical composition deliver superior performance in demanding manufacturing environments.
The product's insoluble nature and high melting point above 140°C make it ideal for high-temperature processing applications, while
maintaining excellent flowability and dispersion properties throughout production cycles.
Properties
| Grade | OZ-110 |
| Appearance | White micro powder |
| Ionicity | non-ionic |
| Soliability | insoluble |
| Melting point | ＞140℃ |
| Acid value | |
| Particle size | 200 mesh pass |
| Specific Gravity | 0.5±0.1 |
Processing Performance Advantages
Superior Flow Control Enhanced Lubricity Surface Excellence
Reduces processing viscosity and Outstanding anti-stick properties Eliminates imperfections like fish eyes
enables faster production speeds in improve mold release and reduce and craters, enhancing coating leveling
extrusion and injection molding. equipment wear. and surface finish.
Production Efficiency Improvements
Thermosetting Resin Performance
Comprehensive Resin Compatibility
OZ-110 demonstrates exceptional performance across the full spectrum of thermosetting resin systems.
Its unique formulation enhances mold release characteristics while improving the final surface finish of molded components.
The stabilizer's high thermal stability ensures consistent performance throughout the curing cycle, even in demanding
high-temperature molding operations. It effectively prevents common defects while maintaining the mechanical
properties of cured parts
Dosage and Handling Recommendations
Application Parameters
The recommended dosage range of 0.7 to 5 parts per hundred resin (PHR) allows for formulation flexibility based on specific processing requirements and desired performance characteristics. Most applications achieve optimal results within the 2-3 PHR range.
0.7 PHR 2-3 PHR 5 PHR
Minimum recommended dosage Optimal range for most applications Maximum for challenging conditions
For initial trials, start at 2 PHR and adjust based on processing behavior and final part quality. Higher loadings up to 5 PHR may benefit challenging materials or extreme processing conditions.
Storage Note: Maintain dry storage conditions to preserve product performance. Exposure to moisture may affect flowability and dispersion properties.
Quality Assurance and Performance
Heat Resistance Weathering Resistance Consistent Quality
Excellent thermal stability maintains performance Superior outdoor durability ensures Rigorous quality control ensures
at elevated processing temperatures without long-term performance in weather-exposed batch-to-batch consistency, enabling
degradation or discoloration. applications without property loss. predictable processing and reliable final
product properties

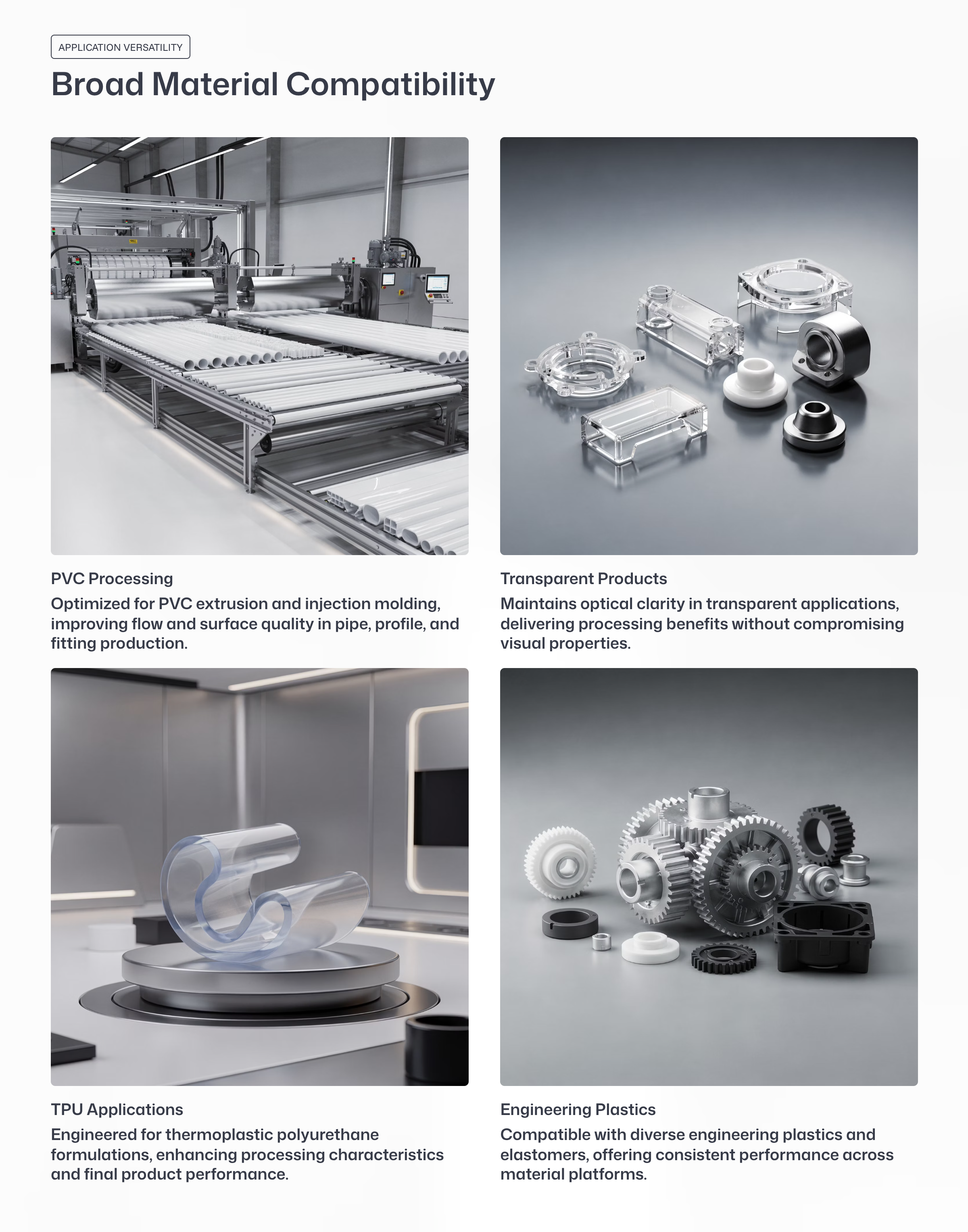

OZ-110 delivers proven performance across diverse processing methods including extrusion, injection molding, compression molding, and foam production. Its versatile formulation serves as an effective processing aid, rubber modifier, and paint/ink additive, making it an essential component for modern manufacturing operations demanding efficiency, quality, and reliability.
Product Specifications
